DePHOS™ H-66-872

Cloud point data for  DePHOS™ H-66-872

• A series of cloud point tests were performed and compared to sodium xylene sulfonate.
• The hydrotropes were solubilized in caustic or alkaline electrolyte solutions to which a 9.5 mole nonyl phenol ethoxylate was added.
• Each sample was heated to the temperature at which the nonionic clouds out of solution.
• The higher the cloud point temperature, the more efficient the hydrotrope.
• The control is 1% NPE-9.5 without hydrotrope added.

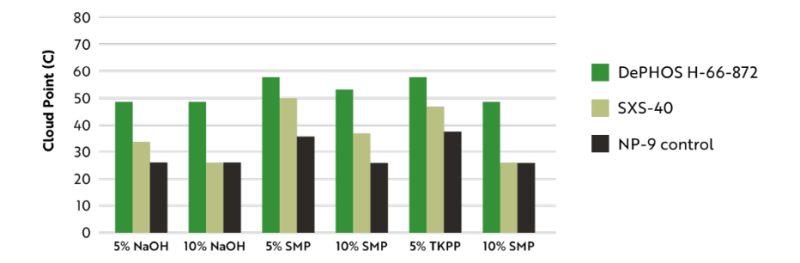

Hydrotrope cloud points DePHOS™ H-66-872 VS. SXS-40 (1% NP-9, 1.5% Hydrotrope by weight)

Foam height data for DePHOS™ H-66-872

• Foam height was determined using a modified Ross-Miles graduated cylinder shake test.
• The data is presented in the following graphs and compared to competitive phosphate esters and sodium xylene sulfonate.

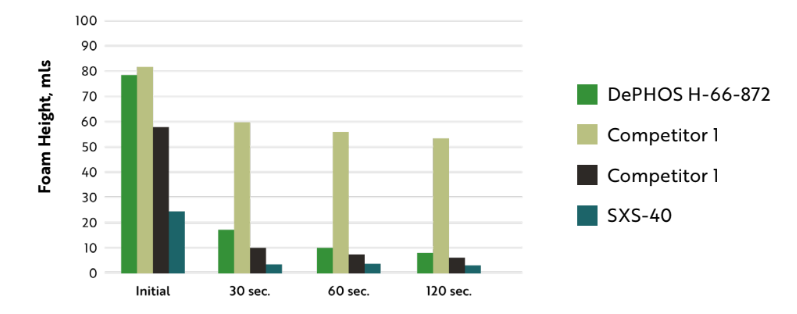

Modified ross miles foam height (1% by weight in DI water)

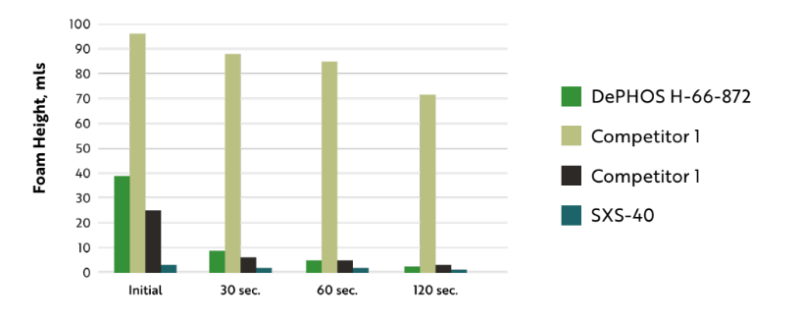

Modified ross miles foam height (1% by weight IN 5% active NaOH)

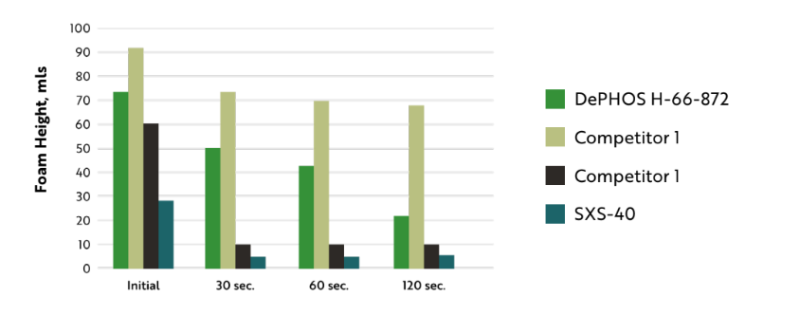

Modified ross miles foam height (2% by weight in 5% Active NaOH)
